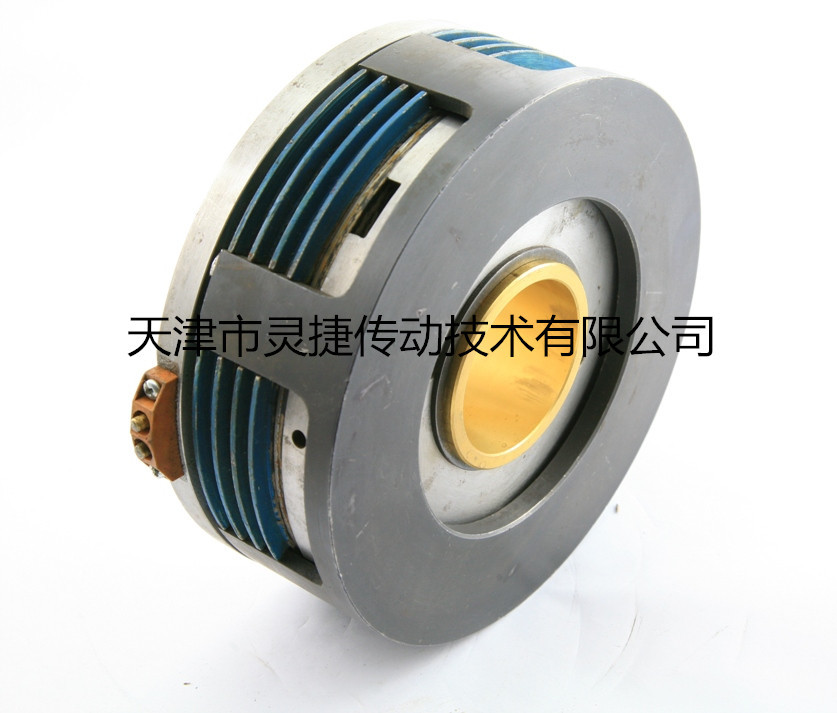

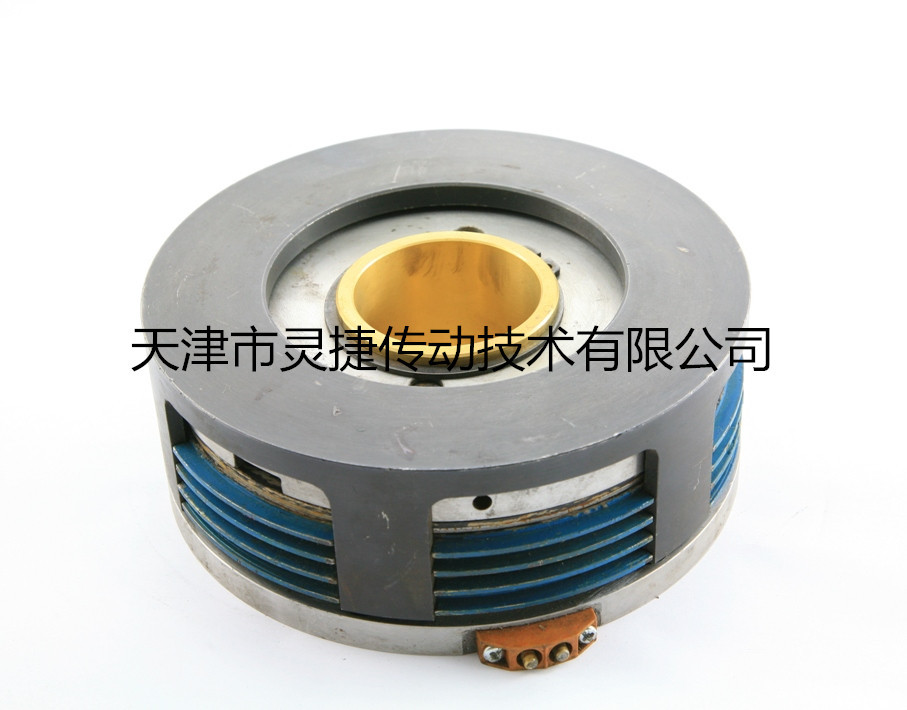

DZM2 series jaw electromagnetic clutch
DZM2 series jaw electromagnetic clutch
+

Share

  • Details
  • Electromagnetic clutch is also called electromagnetic coupling. It is an electromagnetic mechanical connector that applies the principle of electromagnetic induction and the friction between the inner and outer friction plates to make the two rotating parts in the mechanical transmission system. When the active part does not stop rotating, the driven part can be combined or separated with it., Is an automatic electrical appliance. The electromagnetic clutch can be used to control the starting, reverse, speed regulation and braking of the machine. It has the advantages of simple structure, fast action, low control energy, and easy remote control; although the volume is small, it can transmit a large torque; when used as a brake control, it has the advantages of rapid and stable braking, so the electromagnetic clutch is widely Used in various processing machine tools and mechanical transmission systems.

    The jaw-type electromagnetic clutch uses the current passed into the excitation coil in the yoke to generate a magnetic force to attract the armature, thereby engaging the two upper tooth-shaped pawls connected to the yoke and the armature to transmit torque. Jaw-type electromagnetic clutches can be divided into two types: coil rotation (with slip ring type) and coil stationary (without slip ring type). The former excitation coil rotates, and the current is introduced through the slip ring. The latter excitation coil is stationary and the current Directly pass into the coil. In order to make it easy to separate and close, triangular teeth or trapezoidal teeth are generally used. The following figure shows the coil rotating jaw electromagnetic clutch. The upper part of the figure is in the engaged state and the lower part is in the disengaged state. The drive gear 1 is mounted on a rolling bearing on a shaft 9, and the armature 3 and the yoke 8 have triangular teeth on opposite end faces, and the field coil 6 is placed in the yoke. The internal meshing gear pair between parts 2 and 3 has the dual functions of guiding and transmitting torsion. After the coil is energized to establish a magnetic field, the yoke attracts the armature, and the end teeth mesh. The power is transmitted from the gear 1 to the engaged armature and yoke through the ring gear 2, and is output by the shaft 9. When the clutch is de-energized, the compression spring 7 resets the armature, and the two halves of the clutch teeth are separated. The function of the magnetic isolation ring 4 is to make the magnetic lines of force form a loop, reduce magnetic loss and increase the engagement force.

DZM2 series jaw electromagnetic clutch

The jaw-type electromagnetic clutch uses the current passed into the excitation coil in the yoke to generate a magnetic force to attract the armature, thereby engaging the two upper tooth-shaped pawls connected to the yoke and the armature to transmit torque. Jaw-type electromagnetic clutches can be divided into two types: coil rotation (with slip ring type) and coil stationary (without slip ring type). The former excitation coil rotates, and the current is introduced through the slip ring, and the latter excitation coil is stationary. Directly pass into the coil

Keyword

Multi-disc electromagnetic clutch

  • Details
  • Electromagnetic clutch is also called electromagnetic coupling. It is an electromagnetic mechanical connector that applies the principle of electromagnetic induction and the friction between the inner and outer friction plates to make the two rotating parts in the mechanical transmission system. When the active part does not stop rotating, the driven part can be combined or separated with it., Is an automatic electrical appliance. The electromagnetic clutch can be used to control the starting, reverse, speed regulation and braking of the machine. It has the advantages of simple structure, fast action, low control energy, and easy remote control; although the volume is small, it can transmit a large torque; when used as a brake control, it has the advantages of rapid and stable braking, so the electromagnetic clutch is widely Used in various processing machine tools and mechanical transmission systems.

    The jaw-type electromagnetic clutch uses the current passed into the excitation coil in the yoke to generate a magnetic force to attract the armature, thereby engaging the two upper tooth-shaped pawls connected to the yoke and the armature to transmit torque. Jaw-type electromagnetic clutches can be divided into two types: coil rotation (with slip ring type) and coil stationary (without slip ring type). The former excitation coil rotates, and the current is introduced through the slip ring. The latter excitation coil is stationary and the current Directly pass into the coil. In order to make it easy to separate and close, triangular teeth or trapezoidal teeth are generally used. The following figure shows the coil rotating jaw electromagnetic clutch. The upper part of the figure is in the engaged state and the lower part is in the disengaged state. The drive gear 1 is mounted on a rolling bearing on a shaft 9, and the armature 3 and the yoke 8 have triangular teeth on opposite end faces, and the field coil 6 is placed in the yoke. The internal meshing gear pair between parts 2 and 3 has the dual functions of guiding and transmitting torsion. After the coil is energized to establish a magnetic field, the yoke attracts the armature, and the end teeth mesh. The power is transmitted from the gear 1 to the engaged armature and yoke through the ring gear 2, and is output by the shaft 9. When the clutch is de-energized, the compression spring 7 resets the armature, and the two halves of the clutch teeth are separated. The function of the magnetic isolation ring 4 is to make the magnetic lines of force form a loop, reduce magnetic loss and increase the engagement force.

Product inquiry

Tianjin Lingjie Transmission

The company has a product research and development department composed of experts, senior engineers and other professional and technical personnel. It is engaged in research and development and has perfect research and development test equipment. At present, the products reach more than 100 series of nearly 1,000 specifications, and the force distance ranges from 0.1N. m ~ 250000N.m. The company has been rated as a high-tech enterprise by the state for more than ten consecutive years, and a number of R & D projects have been established locally and have received municipal financial support.
