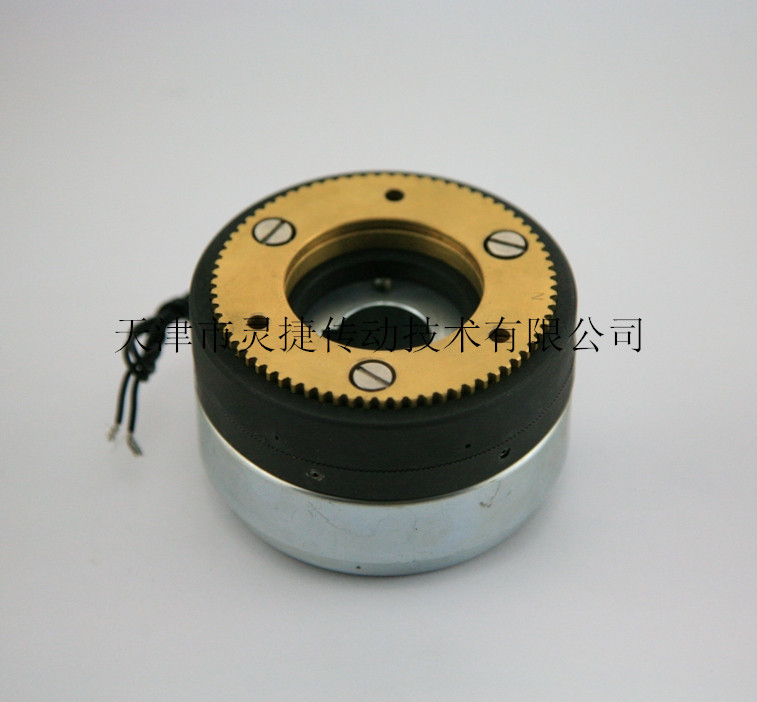

DLY2 Series Positioning Jaw Type Electromagnetic Clutch
DLY2 Series Positioning Jaw Type Electromagnetic Clutch

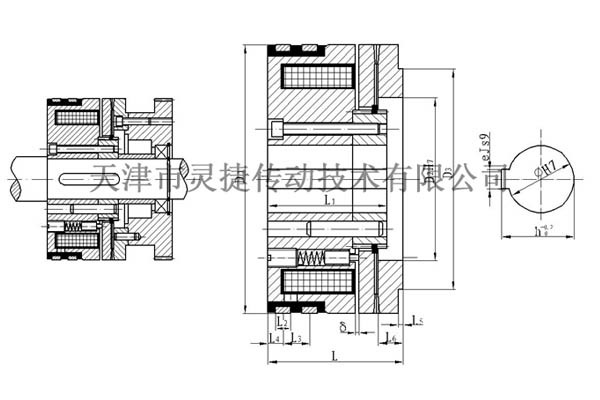

Main Technical Data Size Rated Transmitting Torque(N.m) Rated Voltage D.C(V) Coil power(20℃) W Max Engagement Speed r/min Max Allowed Speed (r/min) 5A 50 24 21 36 4500 5AN 50 24 26 36 4500 10A 100 24 28 30 4000 25A 250 24 32 20 3500 Installation Diagram Shape and Installation Dimensions Model Radial Dimensions Axial Dimensions Brush Model D1 D2 D3 D4 φ h e M L L1 L2 L3 L4 δ 5A 87 41 45 86 28 31.3 8 3-M4D8 45 5 8 8 25.2 0.3 DS-002 5AN 87 — 45 86 28 31.3 8 — 45 5 8 8 26 0.3 10A 94 — 45 94 40 43.3 12 — 50 5 8 8 30 0.5 25A 125 70 75 125 40 43.3 12 3-M5D10 55.5 4 9 12 30.3 0.5 DS-001
